How To Build A Light Box Trade Show Display?

1. Introduction

   In the world of exhibitions and retail branding, standing out is everything. Drawing attention and delivering visual impact is more crucial than ever, and for that, the light box trade show display glows the brightest. These displays use internal LED lighting and high-quality fabric graphics to create bright, seamless visuals that demand attention.

   Whether you're setting up for your first trade show or upgrading an existing booth, building a light box display is simpler than you might think. Thanks to modern modular systems and tool-free installation, anyone can assemble a professional-looking display without technical expertise.

   This blog will guide you through everything you need to know: what a light box trade show display is, what components are involved, and exactly how to build one step by step.

2. What Is a Light Box Trade Show Display?

   A light box trade show display is a backlit display structure made with aluminum frames, LED lighting, and tension fabric graphics. It’s used in trade shows, exhibitions, retail spaces, and promotional environments to enhance brand visibility with vibrant, illuminated visuals.

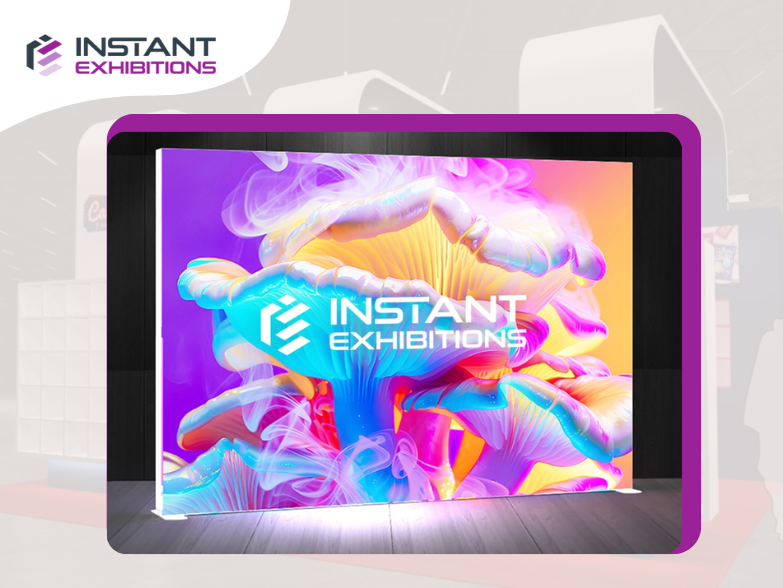

   The structure is built from lightweight, modular profiles that house LED light strips. Once the frame is assembled, a SEG (Silicone Edge Graphic) fabric is pressed into grooves around the perimeter. The result? A clean, frameless appearance with brilliant backlit signage.

3. Why Choose a Light Box Display for Trade Shows?

   • Enhanced Visibility – LED illumination ensures your graphics stand out even in low-light venues.

   • Professional Appeal – Frameless designs give your branding a sleek, high-end look.

   • Easy Setup – Tool-free systems make installation fast and straightforward.

   • Modular Flexibility – Add or remove components to fit different booth sizes.

   • Reusable & Durable – Designed for repeated use with changeable graphics.

   Whether you're showcasing products, delivering a message, or attracting foot traffic, LED light box displays offer an eye-catching and modern way to do it.

4. Building A Light Box Trade Show Display



5. What You’ll Need Before the Assembly of LED Light Box Trade Show Display?

   To build a basic LED light box trade show display of 3m (W) x 2.25m (H), make sure you have all the required components:

   • 3 horizontal profiles (for the base)

   • 3 horizontal profiles (for the top)

   • 4 vertical profiles

   • 7 support poles

   • 2 base feet

   • 2 base foot connectors

   • 2 cross parts

   • 2 corner parts

   • 4 connector parts

   Each profile should come pre-installed with LED light strips for internal illumination. The final product will be an LED light box trade show display capable of showcasing backlit signs with minimal effort.

6. Step-by-Step Guide: How To Build a Light Box Display?

   1. Build the Base Frame

   Connect the three horizontal profiles using the two base foot connectors.

   Attach one base foot to each end of the assembled frame.

   Ensure the frame lies flat and is evenly aligned.

   2. Attach Vertical Profiles

   Insert two vertical profiles into the base feet.

   Add connector parts to the open ends of these profiles. These connectors will link to internal support poles and additional verticals.

   3. Build the Internal Frame

   Insert two support poles vertically into the connectors attached to the base.

   Secure two cross parts horizontally between these poles.

   Add three horizontal support poles through the cross parts to complete the internal structure. This gives the frame stability and ensures even display box lighting.

   4. Complete Side Structure

   Use connector parts to attach the remaining two vertical profiles on each side.

   Add horizontal bars between the verticals to keep everything square and stable.

   5. Add Final Vertical Supports

   Insert the last two vertical support poles. These mirror the internal vertical poles and offer extra reinforcement for tall light boxes.

   6. Assemble the Top Frame

   • Attach the corner parts at both top corners of the frame.

   • Connect the remaining two horizontal profiles to the corner parts.

   • Use the final connector part to link the two profiles at the top center.

7. Final Assembly Instructions for A Light Box Trade Show Display

   Once the structure is fully assembled:

   • 1. Check All Connections

     Ensure every connection point is secure. A tight, stable frame is essential for proper fabric tension and visual appearance.

   • 2. Connect the LED Power Supply

     Plug in the LED wires provided. These power the lit signage from within the frame.

   • 3. Install the SEG Fabric Graphics

     Press the silicone edge of each graphic into the grooves of the frame. This hulds the fabric tightly in place and creates the edge-to-edge illuminated effect.

   • 4. Test the Lights

     Plug the unit into a power outlet and switch it on. The entire display should glow evenly, with no dark patches or shadows.

8. Want to Watch the Setup Instead?

   If you'd rather follow along visually, check out our step-by-step video tutorial to see how to assemble your LED light box display from start to finish.

9. Going Bigger? Build a Complete Light Box Trade Show Booth



   Want a full booth made entirely of light boxes? Here's a basic configuration:

   • Back Wall: 3m (W) × 2.25m (H)

   • Side Wall: 1m (W) × 2.25m (H)

   • Front Counter: 1m (W) × 1m (H)

   This layout creates a self-contained booth with backlit walls and a matching light box counter for interaction or product placement. All components use the same modular frame and LED light box technology, ensuring a consistent look and effortless branding.

   Looking for something more advanced? Explore our LED light box trade show booth kits, which include:

   • All required parts and profiles
   • Pre-installed LED lighting
   • SEG fabric printing
   • Power cables and connectors
   • Tool-free assembly systems and more

These all-in-one kits are designed for exhibitors who want plug-and-play solutions with professional impact.

10. Where To Buy a Light Box Trade Show Display?

    Visit Instant Exhibitions to explore a complete range of lightbox displays, LED light boxes, walls, counters, and custom exhibition kits. Whether you need a single unit or a full booth system, you'll find high-quality displays built for fast setup, easy transport, and maximum visual impact.

11. Final Thoughts

    A light box trade show display is one of the most effective tools for capturing attention at events. With their sleek design, vibrant backlit signs, and easy assembly, these displays help you make a bold impression without the need for complex tools or expert installers.

    Want more help choosing the right configuration or graphic size? Contact us or explore our full catalog of modular light box solutions for trade shows and retail settings.
